Safety and Reliability
Safe
Collection safety
Page embedded JS probe is a common monitoring method of WEB RUM at present, which has been accepted by most users. Users can locally view the data uploaded after their page is embedded in the cloud JS probe, that is, the uploaded data is transparent. See below for the method: (Take the browser Chrome as an example)

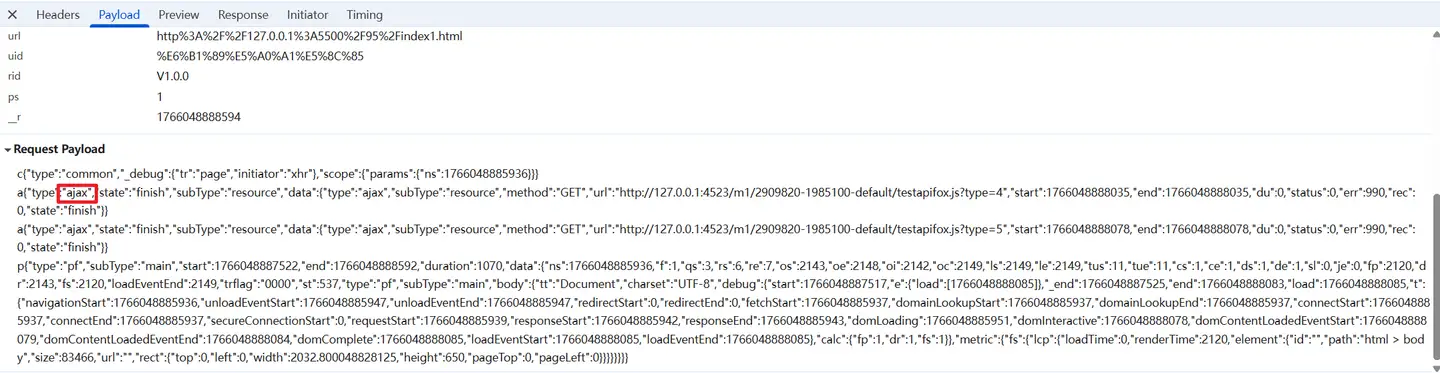

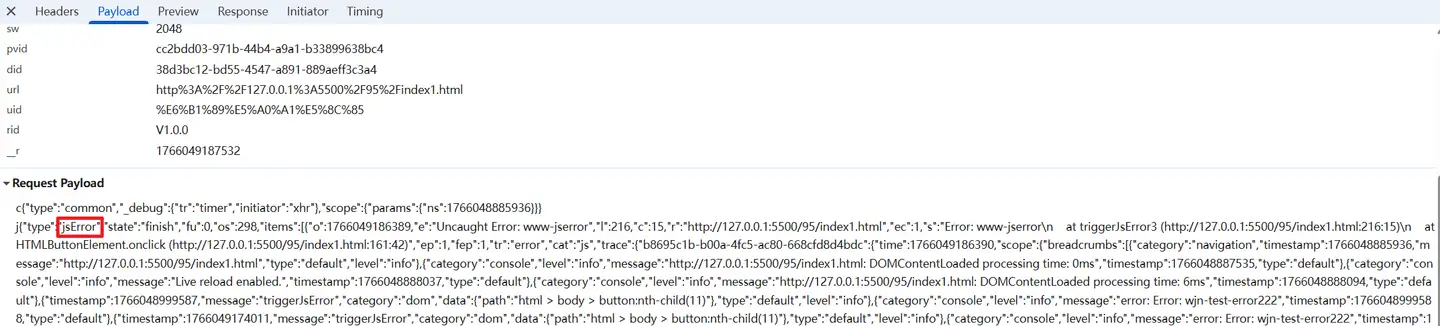

Open Chrome, press F12 to open it Developer Tools>Network, and access the page embedded in the listening cloud JS through the Chrome browser. The action interface uploads the performance data after the code is embedded successfully. View the header information, and you will see what data is uploaded when you access the embedded page.
Transmission security
It is encrypted by MD5 and then transmitted by HTTPS.
Storage security
Passwords are stored in the database as HMAC-MD5.
The account is secure
-
The system provides a special login control module to identify and authenticate the login user.
-
The system provides the function of handling login failure, which can require re-verification by refreshing the verification code.
-
The system provides the function of checking the uniqueness of user identity and the complexity of authentication information to ensure that there is no duplicate user identity in the application system and that the authentication information is not easily used.
Reliability
| Agent Size | 116KB | ||
| Screen Recording Plugin V0.2.0 (Optional) | 57KB | ||
| Encryption Plugin V0.2.0 (Optional) | 40KB |
| Embedding Performance Comparison | JS Heap MIN | JS Heap MAX | Scripting |
| Page without embedded code | 1.66MB | 2MB | 27.8ms |
| Page with embedded code | 1.7MB | 3.37MB | 115.4ms |
| Difference | 0.04MB | 1.37MB | 87.6ms |
| Unembedded code of Standard deviation | 0.10MB | 0.07MB | 3.18ms |
| Standard Deviation of Embedded Code | 0.17MB | 0.21MB | 16.56ms |
| Traffic Consumption | Page Performance Data (No Slow Pages) | PC Access | 2.26KB |
| Mobile Access | 2.38KB | ||
| Page Performance Data (With Slow Pages, Containing 2 Requests, 60 Elements): Related to Page Content Size | PC Access | 24.87KB | |
| Mobile Access | 27.11KB | ||
| JS Error (1 reported, containing 4 JS errors): JS errors are uploaded in batches. Generally, only one will be reported within 10 seconds, depending on the number of JS errors on the page itself. | PC Access | 7.15KB | |
| Mobile Access | 7.39KB | ||
| Ajax (1 Ajax request): The more Ajax requests on the page, the more bandwidth is consumed. | PC Access | 2.08KB | |
| Mobile Access | 2.27KB | ||
| Ajax (10 reports, each containing 5 Ajax requests): After merging probe requests, a single report can contain a maximum of 10 data entries, resulting in a total of 50 Ajax requests reported. | PC Access | 19.16KB | |
| Mobile Access | 19.75KB | ||
| National Cryptographic Encryption - Page Performance Data (No Slow Pages) | PC Access | 4.81KB | |
| Mobile Access | 4.94KB | ||
| National Cryptographic Encryption - Page Performance Data (Slow Page Includes 2 Requests, 60 Elements) | PC Access | 51.96KB | |
| Mobile Access | 52.33KB | ||
| National Cryptographic Encryption - JS Errors (1 Report, Includes 4 JS Errors): JS errors will be uploaded in a merged manner. Generally, only 1 error will be reported within 10 seconds, depending on the number of JS errors on the page itself | PC Access | 15.19KB | |
| Mobile Access | 15.38KB | ||
| National Cryptographic Encryption - Ajax (1 Ajax Request) | PC Access | 4.07KB | |
| Mobile Access | 4.15KB | ||
| National Cryptographic Encryption - Ajax (10 Reports, Each Report Contains 5 Ajax Requests): After merging probe requests, a single report can contain a maximum of 10 data entries, resulting in a final report of 50 Ajax requests | PC Access | 37.16KB | |
| Mobile Access | 38.01KB | ||
| Lightweight Encryption - Page Performance Data (No Slow Pages) | PC Access | 3.55KB | |
| Mobile Access | 3.7KB |
