Android Gradle AGP8 Deployment

Adding Plugins

Add the Tingyun repository in the settings.gradle file.

pluginManagement {
    repositories {
        gradlePluginPortal()
        google()
        maven { url "https://nexus2.tingyun.com/nexus/content/repositories/snapshots/" }// Add the Tingyun repository
    }
}
dependencyResolutionManagement {
    repositoriesMode.set(RepositoriesMode.FAIL_ON_PROJECT_REPOS)
    repositories {
        google()
        maven { url "https://nexus2.tingyun.com/nexus/content/repositories/snapshots/" }// Add the Tingyun repository
    }
}

Add the Tingyun plugin in the build.gradle file at the Project level.

plugins {
    id 'com.android.application' version "8.1.0" apply false //demo used
    id 'com.networkbench.gradleplugin.agp8on' version "2.17.5" apply false //Add the Tingyun repository plugin
}

Add the following content to the App-level build.gradle file.

dependencies {
    implementation "com.networkbench:tingyun-ea-agent-android:2.17.5"
    implementation "com.networkbench.newlens.agent.android2:nbs.newlens.nativecrash:2.0.8" // This package needs to be integrated to collect native crash
    implementation "com.networkbench:nbs.newlens.android.log:1.0.1" // This package needs to be integrated for log recovery
    // Collecting OOM data requires kotlin-gradle-plugin plugin 1.3+, and depends on androidx.core:core-ktx, androidx.appcompat:appcompat, androidx.lifecycle:lifecycle-process, com.squareup.okio:okio and other libraries
    implementation "com.networkbench:tingyun-javaleak:1.0.2" // This package needs to be integrated to collect OOM
    implementation "org.bouncycastle:bcprov-jdk15to18:1.69"// This package needs to be integrated to enable national encryption
    implementation "org.bouncycastle:bcpkix-jdk15to18:1.69"// This package needs to be integrated to enable national encryption
}

Adding TingYun SDK

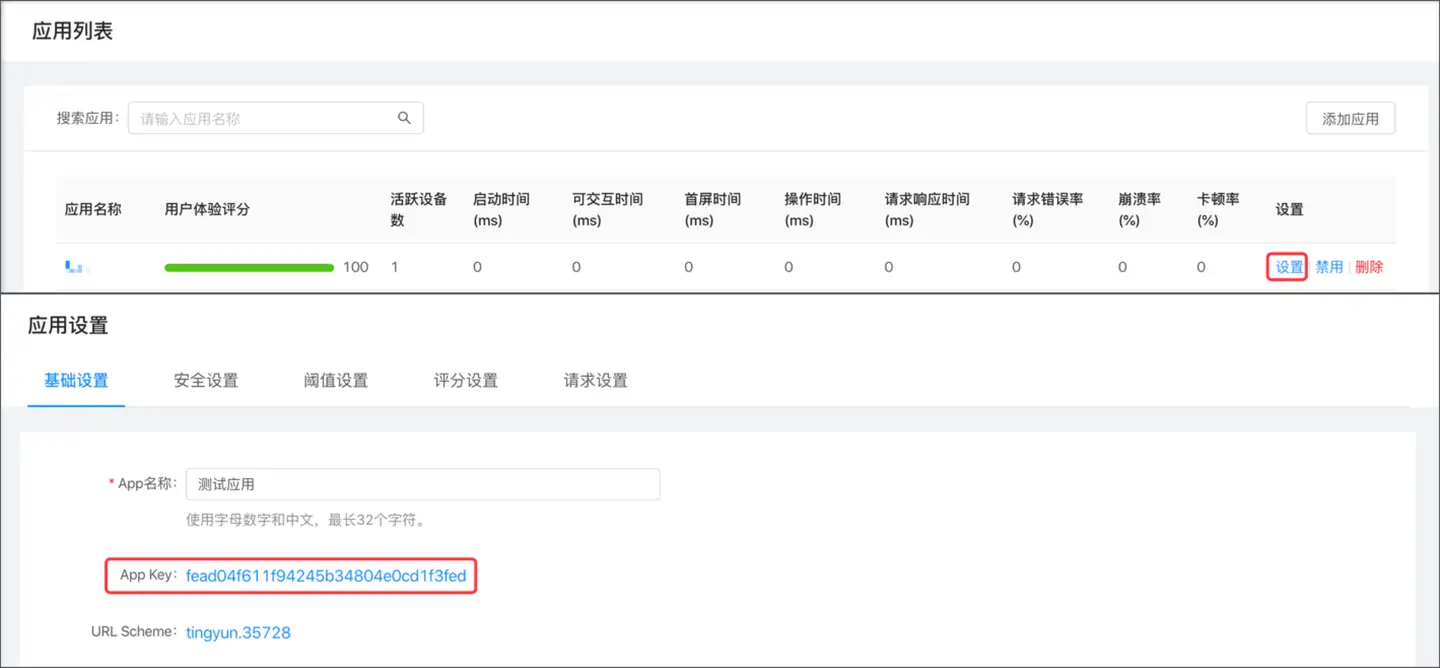

Obtain TingYun App Key.

Initialize the SDK.

i. Initialize the Android SDK in the onCreate() method of the Application.

// "Appkey" should be obtained from the Tingyun platform
// "Host" is the "Redirect" server address of the Tingyun platform, no need to add a protocol header
// setStartOption(7) sets the network, user experience, and crash collection to start on the first launch, effective only for the first launch
NBSAppAgent.setLicenseKey("AppKey").setRedirectHost("Host").setStartOption(7).start(this.getApplicationContext());

ii. The SDK defaults to uploading data via HTTPS. If the server only supports HTTP, you need to set 'setHttpEnabled(true)'.

NBSAppAgent.setLicenseKey("AppKey").setRedirectHost("Host").setHttpEnabled(true).setStartOption(7).start(this.getApplicationContext());

Permission Configuration Description

The Tingyun App SDK requires 'Internet permission' for interaction with the server.

<!-- Necessary permission for interaction with the server -->
<uses-permission android:name="android.permission.INTERNET"/>
<!-- Optional permission to obtain the current device's network status and WiFi status, such as: 2G, 3G, 4G, WiFi, recommended to add -->
<uses-permission android:name="android.permission.ACCESS_NETWORK_STATE"/>
<!-- Optional permission to obtain network status on devices with targetSdkVersion 29 or above, Android 10 or above -->
<uses-permission android:name="android.permission.READ_PHONE_STATE" />
<!-- Optional permission to use the 'Visual Operation Naming' feature -->
<uses-permission android:name="android.permission.SYSTEM_ALERT_WINDOW"/>
<uses-permission android:name="android.permission.SYSTEM_OVERLAY_WINDOW"/>
<!-- Optional permission to obtain the current mobile network connection's base station information -->
<uses-permission android:name="android.permission.ACCESS_COARSE_LOCATION"/>

Adding WebView Configuration

Note：For details on automatically injecting JS probes and Tencent's "X5 Webview" configuration, please refer to the API Documentation。

To collect WebView data, set setDomStorageEnabled(true) and call the setWebViewClient() method. If the method is not called in the embedded App, please add the following content:

WebSettings webSettings = webview.getSettings();
webSettings.setDomStorageEnabled(true);
webview.setWebViewClient(new WebViewClient(){});

Related Interface

/*
To collect WebView data, call this interface in the WebChromeClient's onProgressChanged() method
 */
NBSWebChromeClient.initJSMonitor(view, newProgress);

Code Example

webview.setWebChromeClient(new WebChromeClient(){
    @Override
    public void onProgressChanged(WebView view, int newProgress) {
        NBSWebChromeClient.initJSMonitor(view, newProgress);
        super.onProgressChanged(view, newProgress);
    }
});

Obtain User Identifier

By adding a 'User Identifier', you can search for specific user performance issues on the Tingyun report platform using this identifier.

Related Interface

// The userIdentifier can contain up to 256 characters, supports Chinese, English, numbers, underscores, but cannot contain spaces or other escape characters
NBSAppAgent.setUserIdentifier(String userIdentifier);

Code Example

public class MainActivity extends Activity {
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        String userIdentifier = getUserID();
        NBSAppAgent.setLicenseKey("AppKey").start(this.getApplicationContext());
        //The user identifier can be an email address, phone number, or other information that can identify the user's identity, such as: xxx@tingyun.com
        NBSAppAgent.setUserIdentifier(userIdentifier);
    }
}

Enable National Secret Encryption

The SDK supports sending data using the national secret encryption method.

Note：

National secret encryption only supports Android 6.0 and above. After enabling national secret encryption, the SDK will not collect data on Android 5.x and below.

To enable national secret, you need to integrate bcpkix-jdk15to18-version.jar and bcprov-jdk15to18-version.jar.

The server side also needs to enable national secret encryption functionality simultaneously.

Related Interface

//isEncryptionRequired defaults to false, set to true to enable national secret encryption
NBSAppAgent.encryptionRequired(boolean isEncryptionRequired)

Code Example

NBSAppAgent.setLicenseKey("AppKey").setRedirectHost("Host")
.encryptionRequired(true)// Enable national secret encryption
.start(this.getApplicationContext());

Configure Proguard

Add the following content to the proguard configuration file to prevent the Tingyun App SDK from being unusable.

# ProGuard configurationsfor NetworkBench Lens
-keep class com.networkbench.** { *; }
-dontwarn com.networkbench.**
-keepattributes Exceptions, Signature, InnerClasses
# End NetworkBench Lens

If the project uses OkHttp 3, add the following content to proguard.cfg to avoid affecting network metric collection.

-keep class okhttp3.** { *;}
-dontwarn okhttp3.**

If the project enables national secret, add the following content to proguard.cfg to avoid affecting data collection.

-keep class org.bouncycastle.**{ *;}
-dontwarn org.bouncycastle.**

If line number information needs to be retained, add the following content to proguard.cfg.

-keepattributes SourceFile,LineNumberTable

Packaging and Compilation

gradle clean build

Embedding Verification

After embedding is complete, you can check the results of the Tingyun App SDK log output through "LogCat" for data collection server verification with the TAG NBSAgent. The standard log output result is as follows:

NBSAgent start
NBSAgent enabled
NBSAgent V “TingYun_Version” //TingYun_Version is the version number of the current SDK
connect success

Function Module Switch Verification:

After embedding is complete, you can check the results of the Tingyun App SDK log output through "LogCat" for function module verification, filter for 'TAG' as 'TingYun', the standard log output result is as follows:

D/TingYun: networkModule is true
D/TingYun: uiModule is true
D/TingYun: crashModule is true
D/TingYun: webviewModule is true
D/TingYun: socketDataModule is true
D/TingYun: crossAppModule is true
D/TingYun: anrModule is true
D/TingYun: userActionModule is true
D/TingYun: cdnModule is false
D/TingYun: recordModule is true
D/TingYun: allTraceCollectModule is true
D/TingYun: violenceModule is true
D/TingYun: logModule is true
D/TingYun: oomModule is true
D/TingYun: batteryModule is true
D/TingYun: batteryErrorEnabled is true
D/TingYun: recordNetworkEnabled is true
D/TingYun: cpuModuleEnabled is true
D/TingYun: fpsModuleEnabled is true

Appendix (Optional Configuration)

Enable Visual Naming

Enable the visual naming feature to rename 'native pages' and 'operations' for display in the user experience module by selecting within the app.

Obtain Scheme。

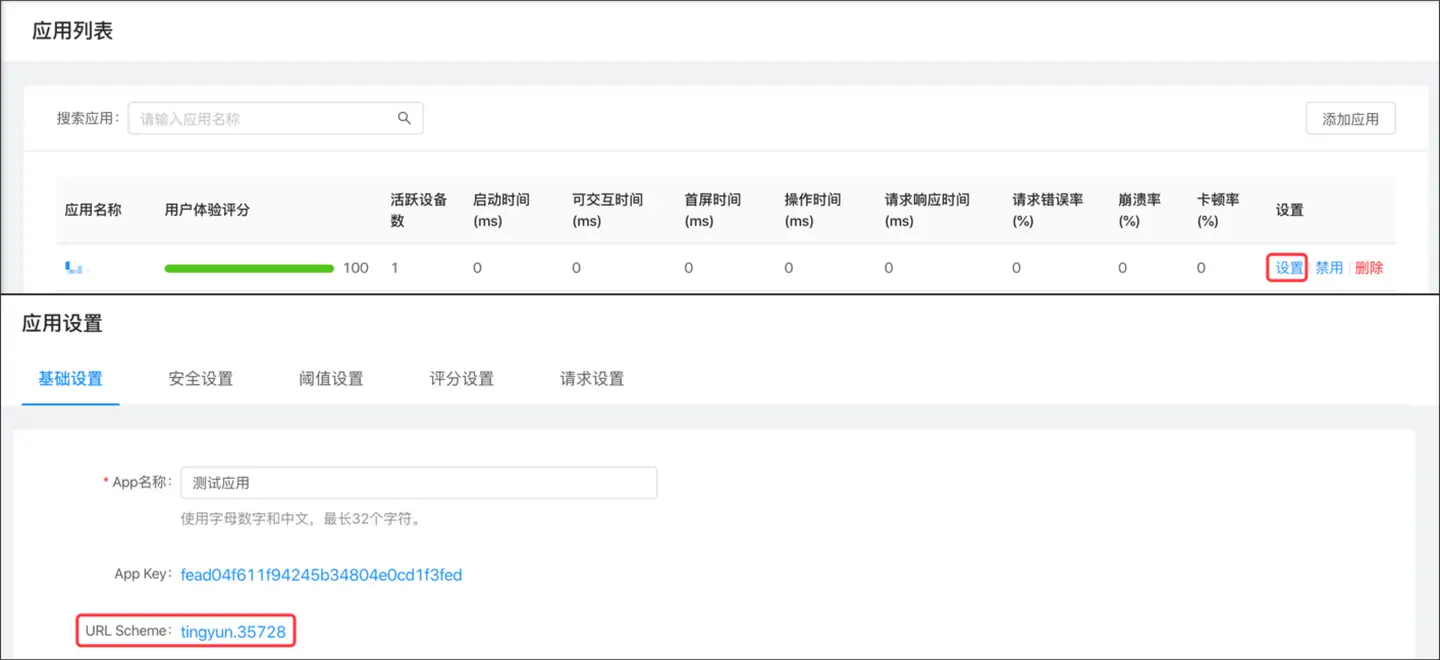

In the app's 'Settings' under 'Modify Settings', select [URL Scheme].

Add scheme configuration to the 'LAUNCHER Activity' in the AndroidMainfest.xml file as shown below:

<activity android:name=".MainActivity">
   <intent-filter>
      <action android:name="android.intent.action.MAIN" />
      <category android:name="android.intent.category.LAUNCHER" />
   </intent-filter>
   <!-- Add the entire intent-filter block here and ensure there is only one data field -->
   <intent-filter>
      <data android:scheme="tingyun.xxxx" />
      <!-- Replace "tingyun.xxxx" in the scheme with the URL Scheme from the Tingyun report settings page -->
      <action android:name="android.intent.action.VIEW"/>
      <category android:name="android.intent.category.DEFAULT"/>
      <category android:name="android.intent.category.BROWSABLE"/>
   </intent-filter>
   <!-- Add the entire intent-filter block here and ensure there is only one data field -->
</activity>
